Sortimat SoloStar Automatic Injector Pen Assembly Line | Unused

Unused ATS - Sortimat SoloStar Automatic Injector Pen Assembly Line

Manufacturer: ATS - Sortimat

-Type: SoloStar Automatic Injector Pen Assembly Line

-Serial #: MS3057

-Year of manufacture: 2016

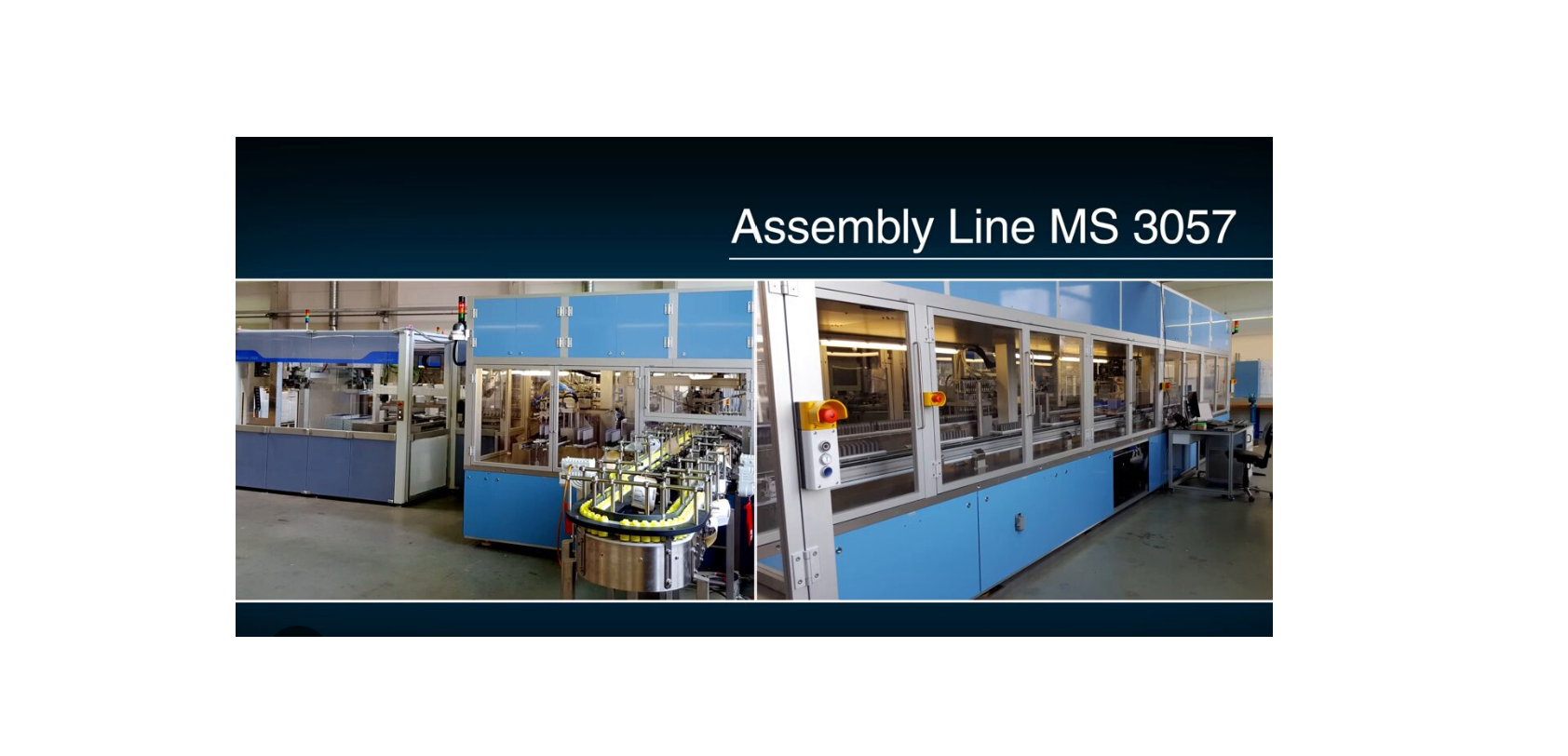

-The machine MS3057 is used for the assembly of the Solo Star Pen consisting of the assembly parts:

-The loading of the cap / cartridge holder

-The placement of the glass product cartridge

-Placement of the mechanic / actuator mechanism

-The cap / cartridge holder and the mechanic mechanism are supplied from two tray loaders / unloaders

-The glass cartridge is supplied by a vibratory table

Cycles per minute: 22

Dual tracks with 12 pieces per track x 2 = 24 pens per index

Output is approx. 528 pens per minute

Race track style product flow from cap loading to pen removal then back to cap loading

Pick and place loading for the caps, cartridges and actuators

Station 1 - cap placement

Station 2 - cap - presence detection on the dual tracks after placement

Station 3 - load cartridge in to cap body

Station 4 - cartridge presence detection on the dual tracks after placement

Station 5 - align and place mechanic - actuator

Station 6 - mechanic presence detection on the dual tracks after placement

Station 7 - rejection of bad parts

Station 8 - inspection station for assembled pens

Station 9 - unloading of complete / accepted pens

Station 10 - detection station for empty nest - all stations empty before transferring back to the beginning (cap placement station)

Overall dimensions of the system (when installed) are: 15,950 mm long x 13,715 mm wide x 2,700 mm high
